THE COMPLETE BRIEF
A prompt with a point of view.
Art direction, behaviour, responsive states and implementation detail. Read it, adapt it, then hand it to your crew.
Read the full prompt78,952 characters
# Recreate this reference faithfully: Flowstate
You are an expert creative front-end developer. Reproduce the referenced motion so the rendered result is recognizably the same first-view composition shown in Foxora. This is an exact reconstruction task, not an inspiration exercise and not a request for a redesign.
Prompt registry version: 7.4.0.
## Delivery contract
- Before editing, classify the open workspace. Use its root only when it is empty, was created specifically for this template, or is the exact source repository named above.
- If the open workspace contains an unrelated application or user work, do not modify, delete, rename, move, or replace any existing file or route. Create an isolated child project named `getlayers-flowstate` and treat that directory as the implementation root. If the environment cannot isolate a child project safely, stop and ask the user to open a new empty project.
- If no project exists, create the implementation required by the complete public source recipe. A single-file implementation is acceptable only when the recipe requests it and the same DOM, shader or media system, behavior, and responsive states are preserved.
- The finished page must load at the normal root route '/' with no required hash. Do not route the user to '#cta', '#hero', a component gallery, a design-spec page, or a different demo.
- Do not stop at a plan, wireframe, component specification, or prose explanation. Write and run the implementation.
- Keep dependencies minimal. Load an external library only when it is essential to reproduce an observed effect, and pin its version.
- Preserve a source-credit comment in the code without adding a visible credit block that changes the reference composition.
## Reference pack — open these before coding
- Foxora showcase detail: https://showcase.foxora.studio/prompts/getlayers-flowstate/
- Foxora cached poster (stable HTTPS): https://showcase.foxora.studio/thumbnails/curated-getlayers-flowstate.webp
- Foxora cached full-motion asset (runtime-safe HTTPS): https://showcase.foxora.studio/motion/getlayers-flowstate.webp
- Original full-motion asset: https://storage.getlayers.ai/templates/flowstate-4c494408e1.mp4
- Original reference visual: https://storage.getlayers.ai/templates/flowstate-4c494408e1.webp
- Exact source page: https://www.getlayers.ai/?tab=templates&layer=flowstate
- Source collection / creator library: https://www.getlayers.ai/?tab=templates
- Source format: Single HTML · WebGL
- Creator credit: GetLayers
- Source terms recorded by Foxora: Free prompt · commercial use when extended
Open the Foxora cached asset and the exact source page before writing components. The cached asset is the visual baseline; the source page is the interaction and context baseline. If the environment cannot access either baseline, stop and report the inaccessible URL instead of inventing a substitute.
## Implementation authority — inspect before coding
- Authority type: complete public source implementation prompt.
- Exact implementation authority: https://www.getlayers.ai/?tab=templates&layer=flowstate
- Original listing and terms: https://www.getlayers.ai/?tab=templates&layer=flowstate
- Authority captured by Foxora: 2026-07-27.
- Bootstrap rule: Follow the complete captured Flowstate source prompt verbatim, including the single-file delivery, exact Onest typography, adaptive rem grid, real semantic navigation and form, word reveals, and the full WebGL fluid solver. Do not replace the solver with a gradient, video, image, or generic blob.
Do not start from the Foxora thumbnail. Open the exact implementation authority first. If it is unavailable, stop and report that URL; do not fabricate an equivalent design.
## Source-specific understanding
- Required visible copy and terminology: Flowstate; Deep Work in a Distracted World; 10K+ already in flow; Join Waitlist.
- Required layout zones: full-viewport WebGL fluid canvas and radial scrim; top Flowstate navigation with glass center links; center badge, headline, support copy, and waitlist bar; bottom copyright line.
- Required working interactions: GPU fluid simulation with load burst and perpetual orbit; word-by-word spring reveal choreography; responsive glass waitlist interface.
- Responsive behavior: Preserve the exact rem scaling breakpoints, one-screen 100lvh composition, mobile nav reduction, pointer and touch fluid input, and deterministic reduced-motion frame from the source prompt.
- Asset policy: The fluid effect must be generated by the included MIT WebGL solver. GetLayers and Foxora preview files are QA-only and may not be embedded in the result.
### Authority acceptance checks
- The full supplied fluidSimulation implementation is present and starts with the specified burst.
- Flowstate copy, glass navigation, waitlist form, and word-by-word reveal timing match the public prompt.
- Real pointer or touch input and the invisible auto-cursor continuously stir the fluid.
- No source preview MP4, WebP, screenshot, iframe, or generic CSS gradient replaces the WebGL canvas.
## Exact asset manifest — copy unchanged
```json
{
"registryVersion": "7.4.0",
"slug": "getlayers-flowstate",
"kind": "Motion",
"source": "https://www.getlayers.ai/?tab=templates&layer=flowstate",
"poster": "https://showcase.foxora.studio/thumbnails/curated-getlayers-flowstate.webp",
"motion": "https://showcase.foxora.studio/motion/getlayers-flowstate.webp",
"originalVisual": "https://storage.getlayers.ai/templates/flowstate-4c494408e1.webp",
"referenceOnly": true,
"normalRootMayRenderReferenceMedia": false,
"frame": {
"width": 960,
"height": 610,
"aspectRatio": 1.5738
}
}
```
These values are immutable for this task. Do not shorten, redirect, proxy, rename, regenerate, or substitute any manifest URL.
## Source-of-truth order
When instructions conflict, use this order:
1. The public source implementation recipe, when included below.
2. The exact source page and its visible behavior.
3. The Foxora cached poster or animation for visual comparison only.
4. The authored anatomy below.
5. General implementation conventions.
The reference is a specification, not a mood board. Do not replace its central artifact with an easier illustration, generic 3D primitive, stock dashboard, gradient blob, bento grid, or unrelated product.
## Exact visual target — FX-E6382611
- Product domain: Flowstate motion-led digital experience.
- Required root artifact: A real, responsive 3d website experience reconstructed from the MotionSites reference.
- Root view: Flowstate interactive root view.
- Native Foxora capture: 960 × 610px, aspect ratio 1.5738.
- Desktop comparison viewport: 1440 × 900px.
- Visual DNA: Use the Flowstate preview to measure its art direction, then rebuild the visible shell, copy, controls, media, motion, and state as an actual interactive page. Preserve the observed palette, material response, crop, and contrast without shipping the preview as the interface.
- Composition map: Recreate the measured frame with semantic regions. Keep the focal subject, negative space, real text blocks, controls, overlaps, and lower-fold boundary in the positions visible in the reference.
- Interaction or motion identity: Implement the visible controls and reproduce the opening, midpoint, and settled motion states with the source-provided implementation recipe or a purpose-built WebGL, canvas, CSS, SVG, or video treatment.
- Visible product entities: Flowstate; 3D Website; 3D website; interactive focal subject; semantic interface copy.
- Signature moments that must survive: Flowstate recognizable focal composition; 3d website typography, controls, spacing, and viewport occupancy; 3d website motion, responsive behavior, and interaction.
- Forbidden drift: rendering the Foxora poster or animated WebP as the page; an unrelated stock 3D model or generic gradient scene; decorative controls or text baked into a screenshot instead of real DOM.
- Required semantic cues: flowstate; website; animation.
Do not change the product category or the artifact type. During the visual-parity pass, preserve visible reference copy, labels, number formatting, control names, and line breaks where they can be read. If a word is genuinely unreadable, use replacement text with the same approximate character count and wrapping; do not invent a new campaign or long-form product story.
## Non-negotiable visual anchor
- Primary subject: Flowstate recognizable focal composition.
- Silhouette and occupancy: Rebuild the focal-subject outline, scale, overlap, crop, and viewport occupancy measured from the preview.
- Material, palette, and contrast: Reproduce the observed translucency, lighting, texture, palette, type treatment, and contrast distribution with real runtime layers.
- Motion or interaction: Recreate the opening, midpoint, and settled states, and make every visible interaction functional.
- Framing and negative space: Use the measured composition edge to edge with no invented wrapper, browser chrome, hero card, or unrelated crop.
- Implementation requirement: Build the root from semantic HTML plus the source-appropriate motion technology. Foxora reference media is QA-only and must not be rendered in the normal experience.
- Forbidden substitution: Do not place the Foxora poster, WebP, screenshot, GIF, or screen recording into the normal page as a background, overlay, fallback, or canonical visual.
This is an interactive motion-experience reconstruction, not an image or animation player. The Foxora poster and animated WebP are visual QA references only. They MUST NOT appear in the normal root DOM, CSS, canvas, video, loading state, reduced-motion state, error state, background, overlay, or fallback. Rebuild every visible heading, label, link, button, field, navigation item, and state as real semantic UI. Implement the focal motion with the source-provided media or the appropriate WebGL, canvas, SVG, CSS, or DOM technique. A screenshot-perfect image with no working interface is an automatic failure.
## Mandatory implementation recipe
### Required live motion implementation
1. Build the complete normal root from real HTML, CSS, and JavaScript or the established framework. The page must remain useful if Foxora's reference URLs are blocked.
2. Treat the manifest's `poster`, `motion`, and `originalVisual` fields as QA inputs only. Do not assign them to an `img`, `video`, `source`, CSS `background`, canvas texture, WebGL texture, iframe, preload tag, fallback, or error state.
3. Implement the focal motion with the technique specified by the public source recipe below. If the source recipe provides a media URL, that source media is allowed; the Foxora preview WebP is still forbidden at runtime. If no source recipe is included, inspect the exact source page and build the observed motion with purpose-built layers instead of embedding Foxora's preview.
4. Render every visible word and control as real semantic UI. Navigation, menus, pills, tabs, forms, toggles, and CTAs must have working hover, focus, active, keyboard, and responsive states.
5. Preserve the measured 960 × 610px composition at native size and at 1440 × 900px, then recompose it deliberately at tablet and mobile sizes without hiding the core workflow.
6. Implement a deterministic reduced-motion state using the same real DOM and runtime scene paused at a composed frame. Do not replace it with the Foxora poster.
7. Keep source credit and the reference manifest in a code comment or README. URLs in that comment are for attribution and QA, not runtime rendering.
8. Before reporting completion, inspect the normal root and assert: at least one semantic `main`; all visible copy exists as text nodes; all visible controls are focusable; the defining motion layer loaded; no Foxora reference URL appears in a rendered `img`, `video`, `source`, inline style, or computed `background-image`; and no screenshot plate covers the experience.
### Public source implementation recipe — preserve these details
# Recreate this site as a single HTML file: Flowstate
You are an expert creative front-end developer. Produce a **single self-contained `index.html`**
that reproduces the project below **exactly** — same layout, visuals, motion, and interaction. Pure
HTML/CSS/JS in one file: no build step, no framework, no bundler. Use plain DOM and vanilla JS; the
only external dependency is the Google font (via a `<link>`) and the Lenis smooth-scroll library
(via a CDN ES-module import). Hardcode every value given here as a fixed constant. Rebuild each
component described below as a block of the one file.
## What it is

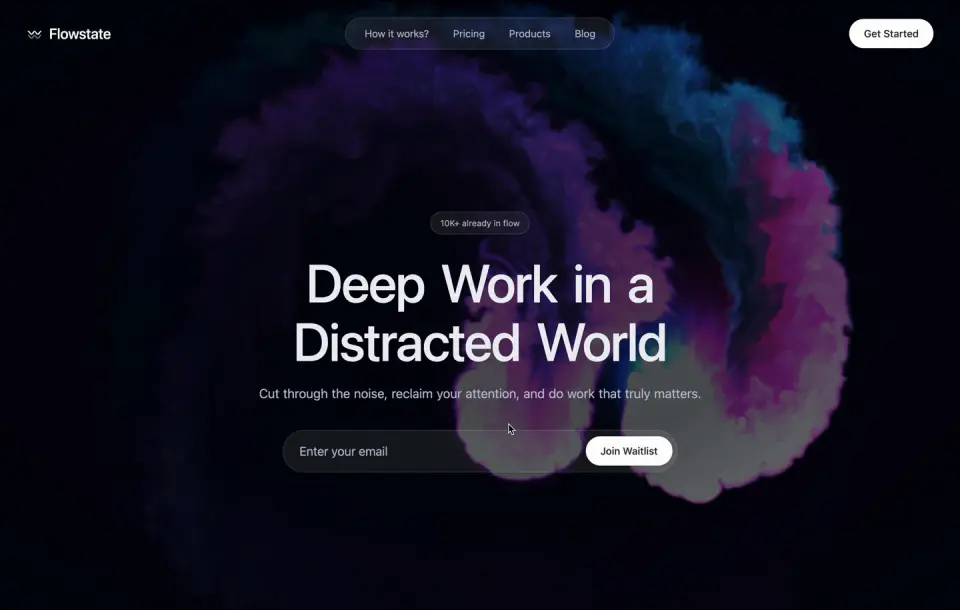

A full-viewport, immersive **dark hero** — a waitlist landing for a deep-work / focus app called
**Flowstate**. A full-bleed **WebGL fluid simulation** (oily "ink-in-water") fills the background:
it bursts into vivid color on load, then an invisible auto-cursor orbits the centre **forever**,
continuously painting bright cyan→blue→violet→magenta ink that swirls and dissipates; the real
mouse/touch also stirs the fluid. A soft radial scrim darkens the centre for text legibility. Over
it sits a centred column — a glass badge pill, a large heading revealed **word-by-word**, a
word-by-word sub-line, and a glass email "join waitlist" bar — plus a top nav (brand + glass link
pill + solid-white CTA pill) and a footer line. Everything **staggers in** on load with soft spring
reveals. The base is near-black `#04050c`; text is bright fog-white. Type is **Onest**.
There is only **one section** (the hero) and it fills `100lvh`. Smooth scrolling is wired via Lenis,
but the page is a single screen — scroll is effectively inert; keep Lenis for parity.
## Page shell & libraries
- **Font:** Onest from Google Fonts — `<link href="https://fonts.googleapis.com/css2?family=Onest:wght@400;500&display=swap" rel="stylesheet">`. Apply `font-family: "Onest", sans-serif` to the body. Weights used: 400 (body) and 500 (medium — brand, heading, buttons, badge).
- **Smooth scroll:** Lenis 1.3.x via importmap, e.g.
```html
<script type="importmap">{ "imports": { "lenis": "https://unpkg.com/lenis@1.3.19/dist/lenis.mjs" } }</script>
```
In a module script: `import Lenis from "lenis"; const lenis = new Lenis({ smoothWheel: true }); function raf(t){ lenis.raf(t); requestAnimationFrame(raf); } requestAnimationFrame(raf);`
- **CSS reset:** `* { margin:0; box-sizing:border-box; }`, remove default anchor/button styling, `body { background: var(--hero-base); color: var(--heading); overflow-x: hidden; }`.
- **Adaptive rem grid (important — the whole layout is rem-based and scales with the viewport).**
Set the root font-size responsively so a rem-based layout stays proportional:
```css
html { font-size: 16px; }
@media (max-width: 1920px) { html { font-size: 0.833333vw; } } /* 16*100/1920 */
@media (max-width: 1440px) { html { font-size: 1.111111vw; } } /* 16*100/1440 */
@media (max-width: 1024px) { html { font-size: 1.5625vw; } } /* 16*100/1024 */
@media (max-width: 640px) { html { font-size: 4.444444vw; } } /* 16*100/360 */
```
All sizes below are given in rem so they follow this scale. Breakpoints in the markup use
`sm` = **640px** (min-width) style rules; treat "sm:" values as the ≥640px branch, base values as <640px.
### CSS custom properties (colors — bake these in exactly)
```css
:root {
--hero-base: #04050c; /* base behind the shader */
--heading: #eef0f6; /* bright heading / input text */
--body-muted: #b9becf; /* body copy, nav links, badge, footer */
--on-media: #ffffff; /* brand text/icons sitting on the shader */
--action-inverse: #ffffff; /* white pill button bg */
--action-inverse-fg: #2f2f33; /* dark text on the white pill */
--glass-fill: rgba(255,255,255,0.08);
--glass-border: rgba(255,255,255,0.16);
--scrim: rgba(4,5,12,0.46);
--scrim-strong: rgba(4,5,12,0.68);
--scrim-soft: rgba(4,5,12,0.12);
--duration-fast: 150ms;
--ease-entrance: cubic-bezier(0.2, 0, 0, 1);
}
```
## Layout & sections (in order)
Root: `<section>` — `position:relative; display:flex; flex-direction:column; align-items:center;
justify-content:center; min-height:100lvh; width:100vw; overflow:hidden; background:var(--hero-base);
text-align:center; padding: 0 1.25rem;` (≥640px: padding `0 2.5rem`).
**1. Fluid canvas (z-0).** `<canvas aria-hidden="true">` absolutely positioned `inset:0; width:100%;
height:100%; z-index:0; pointer-events:none;`. Runs the WebGL fluid engine (see "The WebGL scene").
**2. Scrim (z-1).** An `aria-hidden` div, `position:absolute; inset:0; z-index:1; pointer-events:none;`
with this exact background:
```css
background: radial-gradient(115% 95% at 50% 46%,
var(--scrim-strong) 0%, var(--scrim-strong) 24%, var(--scrim) 52%, var(--scrim-soft) 100%);
```
**3. Top nav (`<header>`, z-20).** `position:absolute; inset-inline:0; top:0; display:flex;
align-items:center; justify-content:space-between; padding:1.25rem;` (≥640px `padding:1.75rem 2.5rem`).
Reveals as the first stagger step (see reveals).
- **Left — brand link** to `/`: `display:flex; align-items:center; gap:0.6rem; font-weight:500;
font-size:1.15rem` (≥640px `1.375rem`); color `var(--on-media)`; `letter-spacing:-0.01em`. Contains:
- **Brand glyph** (inline SVG, `1.35rem` square, ≥640px `1.5rem`, `stroke:currentColor`) — two
interleaving flow lines echoing the fluid:
```html
<svg viewBox="0 0 24 24" fill="none" aria-hidden="true">
<path d="M2.5 9c2.5 0 2.5 4.2 5 4.2S10 9 12 9s2.5 4.2 5 4.2S19.5 9 21.5 9" stroke="currentColor" stroke-width="1.8" stroke-linecap="round"/>
<path d="M2.5 15c2.5 0 2.5 4.2 5 4.2S10 15 12 15s2.5 4.2 5 4.2S19.5 15 21.5 15" stroke="currentColor" stroke-width="1.8" stroke-linecap="round" opacity="0.5"/>
</svg>
```
- the word **Flowstate**.
- **Center — glass link pill** (hidden below 640px; shown ≥640px as `display:flex`):
`position:absolute; left:50%; transform:translateX(-50%); height:3rem; align-items:center;
gap:2.25rem; border-radius:9999px; border:1px solid var(--glass-border); background:var(--glass-fill);
padding:0 1.75rem; backdrop-filter:blur(12px);`. Links (font-size `0.95rem`, color `var(--body-muted)`,
hover → `var(--heading)`, `transition:color var(--duration-fast) var(--ease-entrance)`,
`white-space:nowrap`): **How it works?** (`#how-it-works`), **Pricing** (`#pricing`),
**Products** (`#products`), **Blog** (`#blog`).
- **Right — CTA pill button** (the shared white pill, see below) labeled **Get Started**, href `#get-started`.
**4. Center column (z-10).** `position:relative; z-index:10; display:flex; flex-direction:column;
align-items:center; width:100%; max-width:22rem;` (≥640px `40rem`, ≥1024px `52rem`). Contains, in order:
- **Badge pill** (`<p>`): `display:inline-flex; align-items:center; border-radius:9999px;
border:1px solid var(--glass-border); background:var(--glass-fill); padding:0.4rem 0.875rem;
font-size:0.72rem` (≥640px `0.8rem`); color `var(--body-muted)`; `backdrop-filter:blur(12px);`.
Text: **10K+ already in flow**.
- **Heading** (`<h1>`) — text **"Deep Work in a Distracted World"**, revealed **word-by-word**
(see reveals). `margin-top:1.25rem` (≥640px `1.75rem`); `max-width:20rem` (≥640px `34rem`,
≥1024px `46rem`); `font-size:2rem` (≥640px `3.5rem`, ≥1024px `5rem`); `font-weight:500;
line-height:1.1; letter-spacing:-0.02em; color:var(--heading); text-align:center;`.
- **Sub-line** (`<p>`) — text **"Cut through the noise, reclaim your attention, and do work that
truly matters."**, revealed word-by-word. `margin-top:1rem` (≥640px `1.25rem`); `max-width:20rem`
(≥640px `34rem`, ≥1024px `none`); `font-size:1rem` (≥640px `1.1rem`, ≥1024px `1.2rem`);
`line-height:1.5; color:var(--body-muted);`.
- **Waitlist form** (`margin-top:1.75rem`, ≥640px `2.5rem`; `display:flex; justify-content:center;
width:100%`). A `<form>` `width:37rem; max-width:100%`. Inside, a glass bar:
`display:flex; align-items:center; height:3.5rem` (≥640px `4rem`); `border-radius:9999px;
border:1px solid var(--glass-border); background:var(--glass-fill); backdrop-filter:blur(12px);
box-shadow:0 1px 2px rgba(0,0,0,.05); padding-left:1.25rem; padding-right:0.35rem` (≥640px
`pl:1.5rem; pr:0.4rem`). Contains an `<input type="email" required placeholder="Enter your email">`
(`flex:1; min-width:0; height:100%; background:transparent; color:var(--heading); font-size:0.95rem`
(≥640px `1.15rem`); placeholder color `var(--body-muted)`; no outline) and a white **Join Waitlist**
submit pill. On submit: `preventDefault()`, no backend (no-op).
**5. Footer (`<footer>`, z-20).** `position:absolute; inset-inline:0; bottom:0; display:flex;
justify-content:center; padding:1.25rem` (≥640px `1.5rem 2.5rem`); `font-size:0.72rem` (≥640px `0.8rem`);
color `var(--body-muted)`. Text: **© 2026 Flowstate — engineered for deep work.**
**Shared white "pill" button** (used by "Get Started" and "Join Waitlist"):
`display:inline-flex; align-items:center; justify-content:center; height:2.5rem` (≥640px `2.75rem`);
`border-radius:9999px; background:var(--action-inverse); padding:0 1.125rem` (≥640px `0 1.375rem`);
`font-size:0.85rem` (≥640px `0.95rem`); `font-weight:500; color:var(--action-inverse-fg);
box-shadow:0 1px 2px rgba(0,0,0,.05); transition:background var(--duration-fast) var(--ease-entrance);`
hover → background `rgba(255,255,255,0.85)`; focus-visible → `outline:none; box-shadow:0 0 0 2px rgba(255,255,255,.7)`.
## The loader / reveal (the hero moment the preview captures)
There is **no separate loader overlay**. The "reveal" is the combination of (a) the fluid's **load
burst** and (b) the **staggered entrance** of the content — both fire on page load.
- **Fluid load burst:** the moment the engine starts it fires `multipleSplats(34)` (a dense burst of
34 bright ink splats at random points) and queues **8** rapid follow-up waves
(`splatStack.push(10 + random*10)`, drained one per frame). ~700ms later the invisible auto-cursor
begins its perpetual orbit. This is baked into the engine below — do not change it.
- **Content stagger:** each block animates from `opacity:0` + a small translate to `opacity:1` +
`translate:0`, with a soft spring (approximate a spring of tension 120 / friction 24 → ~700ms
`cubic-bezier(0.2,0,0,1)` ease is a fine stand-in) and the following **delays after load** (ms):
| Block | delay | from-transform | reveal style |
|---|---|---|---|
| Nav (header) | 150 | `translateY(-0.75rem)` | whole bar fades/slides in together |
| Badge pill | 320 | `translateY(1.25rem)` | fades/slides up together |
| Heading | 480 | per-word | **word-by-word**: each word `translateY(26px)→0`, `opacity 0→1`, **stagger 85ms**, per-word duration **720ms**, easing easeOutCubic (`1-(1-t)^3`) |
| Sub-line | 1150 | per-word | **word-by-word**: each word `translateY(14px)→0`, `opacity 0→1`, **stagger 22ms**, per-word duration **600ms**, easeOutCubic |
| Waitlist form | 1450 | `translateY(1.25rem)` | fades/slides up together |
| Footer | 1650 | `translateY(1.25rem)` | fades/slides up together |
For the word-by-word reveals, split the heading/sub-line text on spaces, wrap each word in an
`inline-block` span (add a trailing space between words so wrapping is natural), and animate each
span with its own `transition-delay = baseDelay + wordIndex * stagger`. Keep the line-height floor
at 1.1 for the heading so descenders aren't clipped.
## The WebGL scene — the fluid ink simulation (this is the effect; reproduce verbatim)
Full-bleed GPU fluid solver (Pavel Dobryakov's WebGL fluid sim, MIT), tuned for an oily, marbled,
vivid-on-near-black look. Mount it on the background `<canvas>`, call `fluidSimulation(canvas)` once
after the DOM is ready. The engine owns its own `requestAnimationFrame` loop and reads pointer input
from **window** events (the canvas sits behind content with `pointer-events:none`, so it maps
`clientX/Y` into canvas space via `getBoundingClientRect()`). Paste the engine **verbatim** (it is
plain JS — the only edits from the original are: the tuned `config`, the strong load burst, the
`generateColor` cyan→magenta band, and the invisible auto-cursor that orbits the centre forever):
```js
function fluidSimulation(canvas) {
canvas.width = canvas.clientWidth;
canvas.height = canvas.clientHeight;
let config = {
SIM_RESOLUTION: 200,
DYE_RESOLUTION: 512,
DENSITY_DISSIPATION: 0.958, // trails fade so idle swirls stay dynamic, not saturated
VELOCITY_DISSIPATION: 0.96,
PRESSURE_DISSIPATION: 0.8,
PRESSURE_ITERATIONS: 20,
CURL: 42, // extra swirl for the marbled look
SPLAT_RADIUS: 0.22, // fatter ink blobs
SHADING: true,
COLORFUL: true,
PAUSED: false,
BACK_COLOR: { r: 4, g: 5, b: 12 }, // deep near-black base (immersive)
TRANSPARENT: false,
BLOOM: false,
BLOOM_ITERATIONS: 8,
BLOOM_RESOLUTION: 256,
BLOOM_INTENSITY: 0.8,
BLOOM_THRESHOLD: 0.8,
BLOOM_SOFT_KNEE: 0.7
}
function pointerPrototype() {
this.id = -1;
this.x = 0;
this.y = 0;
this.dx = 0;
this.dy = 0;
this.down = false;
this.moved = false;
this.color = [30, 0, 300];
}
let pointers = [];
let splatStack = [];
let bloomFramebuffers = [];
pointers.push(new pointerPrototype());
const { gl, ext } = getWebGLContext(canvas);
if (isMobile())
config.SHADING = false;
if (!ext.supportLinearFiltering) {
config.SHADING = false;
config.BLOOM = false;
}
function getWebGLContext(canvas) {
const params = { alpha: true, depth: false, stencil: false, antialias: false, preserveDrawingBuffer: false };
let gl = canvas.getContext('webgl2', params);
const isWebGL2 = !!gl;
if (!isWebGL2)
gl = canvas.getContext('webgl', params) || canvas.getContext('experimental-webgl', params);
let halfFloat;
let supportLinearFiltering;
if (isWebGL2) {
gl.getExtension('EXT_color_buffer_float');
supportLinearFiltering = gl.getExtension('OES_texture_float_linear');
} else {
halfFloat = gl.getExtension('OES_texture_half_float');
supportLinearFiltering = gl.getExtension('OES_texture_half_float_linear');
}
gl.clearColor(0.0, 0.0, 0.0, 1.0);
const halfFloatTexType = isWebGL2 ? gl.HALF_FLOAT : halfFloat.HALF_FLOAT_OES;
let formatRGBA;
let formatRG;
let formatR;
if (isWebGL2) {
formatRGBA = getSupportedFormat(gl, gl.RGBA16F, gl.RGBA, halfFloatTexType);
formatRG = getSupportedFormat(gl, gl.RG16F, gl.RG, halfFloatTexType);
formatR = getSupportedFormat(gl, gl.R16F, gl.RED, halfFloatTexType);
}
else {
formatRGBA = getSupportedFormat(gl, gl.RGBA, gl.RGBA, halfFloatTexType);
formatRG = getSupportedFormat(gl, gl.RGBA, gl.RGBA, halfFloatTexType);
formatR = getSupportedFormat(gl, gl.RGBA, gl.RGBA, halfFloatTexType);
}
return {
gl,
ext: {
formatRGBA,
formatRG,
formatR,
halfFloatTexType,
supportLinearFiltering
}
};
}
function getSupportedFormat(gl, internalFormat, format, type) {
if (!supportRenderTextureFormat(gl, internalFormat, format, type)) {
switch (internalFormat) {
case gl.R16F:
return getSupportedFormat(gl, gl.RG16F, gl.RG, type);
case gl.RG16F:
return getSupportedFormat(gl, gl.RGBA16F, gl.RGBA, type);
default:
return null;
}
}
return {
internalFormat,
format
}
}
function supportRenderTextureFormat(gl, internalFormat, format, type) {
let texture = gl.createTexture();
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);
gl.texImage2D(gl.TEXTURE_2D, 0, internalFormat, 4, 4, 0, format, type, null);
let fbo = gl.createFramebuffer();
gl.bindFramebuffer(gl.FRAMEBUFFER, fbo);
gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.COLOR_ATTACHMENT0, gl.TEXTURE_2D, texture, 0);
const status = gl.checkFramebufferStatus(gl.FRAMEBUFFER);
if (status != gl.FRAMEBUFFER_COMPLETE)
return false;
return true;
}
function clamp01(input) {
return Math.min(Math.max(input, 0), 1);
}
function isMobile() {
return /Mobi|Android/i.test(navigator.userAgent);
}
class GLProgram {
constructor(vertexShader, fragmentShader) {
this.uniforms = {};
this.program = gl.createProgram();
gl.attachShader(this.program, vertexShader);
gl.attachShader(this.program, fragmentShader);
gl.linkProgram(this.program);
if (!gl.getProgramParameter(this.program, gl.LINK_STATUS))
throw gl.getProgramInfoLog(this.program);
const uniformCount = gl.getProgramParameter(this.program, gl.ACTIVE_UNIFORMS);
for (let i = 0; i < uniformCount; i++) {
const uniformName = gl.getActiveUniform(this.program, i).name;
this.uniforms[uniformName] = gl.getUniformLocation(this.program, uniformName);
}
}
bind() {
gl.useProgram(this.program);
}
}
function compileShader(type, source) {
const shader = gl.createShader(type);
gl.shaderSource(shader, source);
gl.compileShader(shader);
if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS))
throw gl.getShaderInfoLog(shader);
return shader;
};
const baseVertexShader = compileShader(gl.VERTEX_SHADER, `
precision highp float;
attribute vec2 aPosition;
varying vec2 vUv;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform vec2 texelSize;
void main () {
vUv = aPosition * 0.5 + 0.5;
vL = vUv - vec2(texelSize.x, 0.0);
vR = vUv + vec2(texelSize.x, 0.0);
vT = vUv + vec2(0.0, texelSize.y);
vB = vUv - vec2(0.0, texelSize.y);
gl_Position = vec4(aPosition, 0.0, 1.0);
}
`);
const clearShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying highp vec2 vUv;
uniform sampler2D uTexture;
uniform float value;
void main () {
gl_FragColor = value * texture2D(uTexture, vUv);
}
`);
const colorShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
uniform vec4 color;
void main () {
gl_FragColor = color;
}
`);
const backgroundShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uTexture;
uniform float aspectRatio;
#define SCALE 25.0
void main () {
vec2 uv = floor(vUv * SCALE * vec2(aspectRatio, 1.0));
float v = mod(uv.x + uv.y, 2.0);
v = v * 0.1 + 0.8;
gl_FragColor = vec4(vec3(v), 1.0);
}
`);
const displayShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uTexture;
void main () {
vec3 C = texture2D(uTexture, vUv).rgb;
float a = max(C.r, max(C.g, C.b));
gl_FragColor = vec4(C, a);
}
`);
const displayBloomShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uTexture;
uniform sampler2D uBloom;
uniform sampler2D uDithering;
uniform vec2 ditherScale;
void main () {
vec3 C = texture2D(uTexture, vUv).rgb;
vec3 bloom = texture2D(uBloom, vUv).rgb;
vec3 noise = texture2D(uDithering, vUv * ditherScale).rgb;
noise = noise * 2.0 - 1.0;
bloom += noise / 800.0;
bloom = pow(bloom.rgb, vec3(1.0 / 2.2));
C += bloom;
float a = max(C.r, max(C.g, C.b));
gl_FragColor = vec4(C, a);
}
`);
const displayShadingShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform sampler2D uTexture;
uniform vec2 texelSize;
void main () {
vec3 L = texture2D(uTexture, vL).rgb;
vec3 R = texture2D(uTexture, vR).rgb;
vec3 T = texture2D(uTexture, vT).rgb;
vec3 B = texture2D(uTexture, vB).rgb;
vec3 C = texture2D(uTexture, vUv).rgb;
float dx = length(R) - length(L);
float dy = length(T) - length(B);
vec3 n = normalize(vec3(dx, dy, length(texelSize)));
vec3 l = vec3(0.0, 0.0, 1.0);
float diffuse = clamp(dot(n, l) + 0.7, 0.7, 1.0);
C.rgb *= diffuse;
float a = max(C.r, max(C.g, C.b));
gl_FragColor = vec4(C, a);
}
`);
const displayBloomShadingShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform sampler2D uTexture;
uniform sampler2D uBloom;
uniform sampler2D uDithering;
uniform vec2 ditherScale;
uniform vec2 texelSize;
void main () {
vec3 L = texture2D(uTexture, vL).rgb;
vec3 R = texture2D(uTexture, vR).rgb;
vec3 T = texture2D(uTexture, vT).rgb;
vec3 B = texture2D(uTexture, vB).rgb;
vec3 C = texture2D(uTexture, vUv).rgb;
float dx = length(R) - length(L);
float dy = length(T) - length(B);
vec3 n = normalize(vec3(dx, dy, length(texelSize)));
vec3 l = vec3(0.0, 0.0, 1.0);
float diffuse = clamp(dot(n, l) + 0.7, 0.7, 1.0);
C *= diffuse;
vec3 bloom = texture2D(uBloom, vUv).rgb;
vec3 noise = texture2D(uDithering, vUv * ditherScale).rgb;
noise = noise * 2.0 - 1.0;
bloom += noise / 800.0;
bloom = pow(bloom.rgb, vec3(1.0 / 2.2));
C += bloom;
float a = max(C.r, max(C.g, C.b));
gl_FragColor = vec4(C, a);
}
`);
const bloomPrefilterShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying vec2 vUv;
uniform sampler2D uTexture;
uniform vec3 curve;
uniform float threshold;
void main () {
vec3 c = texture2D(uTexture, vUv).rgb;
float br = max(c.r, max(c.g, c.b));
float rq = clamp(br - curve.x, 0.0, curve.y);
rq = curve.z * rq * rq;
c *= max(rq, br - threshold) / max(br, 0.0001);
gl_FragColor = vec4(c, 0.0);
}
`);
const bloomBlurShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform sampler2D uTexture;
void main () {
vec4 sum = vec4(0.0);
sum += texture2D(uTexture, vL);
sum += texture2D(uTexture, vR);
sum += texture2D(uTexture, vT);
sum += texture2D(uTexture, vB);
sum *= 0.25;
gl_FragColor = sum;
}
`);
const bloomFinalShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform sampler2D uTexture;
uniform float intensity;
void main () {
vec4 sum = vec4(0.0);
sum += texture2D(uTexture, vL);
sum += texture2D(uTexture, vR);
sum += texture2D(uTexture, vT);
sum += texture2D(uTexture, vB);
sum *= 0.25;
gl_FragColor = sum * intensity;
}
`);
const splatShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uTarget;
uniform float aspectRatio;
uniform vec3 color;
uniform vec2 point;
uniform float radius;
void main () {
vec2 p = vUv - point.xy;
p.x *= aspectRatio;
vec3 splat = exp(-dot(p, p) / radius) * color;
vec3 base = texture2D(uTarget, vUv).xyz;
gl_FragColor = vec4(base + splat, 1.0);
}
`);
const advectionManualFilteringShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uVelocity;
uniform sampler2D uSource;
uniform vec2 texelSize;
uniform vec2 dyeTexelSize;
uniform float dt;
uniform float dissipation;
vec4 bilerp (sampler2D sam, vec2 uv, vec2 tsize) {
vec2 st = uv / tsize - 0.5;
vec2 iuv = floor(st);
vec2 fuv = fract(st);
vec4 a = texture2D(sam, (iuv + vec2(0.5, 0.5)) * tsize);
vec4 b = texture2D(sam, (iuv + vec2(1.5, 0.5)) * tsize);
vec4 c = texture2D(sam, (iuv + vec2(0.5, 1.5)) * tsize);
vec4 d = texture2D(sam, (iuv + vec2(1.5, 1.5)) * tsize);
return mix(mix(a, b, fuv.x), mix(c, d, fuv.x), fuv.y);
}
void main () {
vec2 coord = vUv - dt * bilerp(uVelocity, vUv, texelSize).xy * texelSize;
gl_FragColor = dissipation * bilerp(uSource, coord, dyeTexelSize);
gl_FragColor.a = 1.0;
}
`);
const advectionShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
uniform sampler2D uVelocity;
uniform sampler2D uSource;
uniform vec2 texelSize;
uniform float dt;
uniform float dissipation;
void main () {
vec2 coord = vUv - dt * texture2D(uVelocity, vUv).xy * texelSize;
gl_FragColor = dissipation * texture2D(uSource, coord);
gl_FragColor.a = 1.0;
}
`);
const divergenceShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying highp vec2 vUv;
varying highp vec2 vL;
varying highp vec2 vR;
varying highp vec2 vT;
varying highp vec2 vB;
uniform sampler2D uVelocity;
void main () {
float L = texture2D(uVelocity, vL).x;
float R = texture2D(uVelocity, vR).x;
float T = texture2D(uVelocity, vT).y;
float B = texture2D(uVelocity, vB).y;
vec2 C = texture2D(uVelocity, vUv).xy;
if (vL.x < 0.0) { L = -C.x; }
if (vR.x > 1.0) { R = -C.x; }
if (vT.y > 1.0) { T = -C.y; }
if (vB.y < 0.0) { B = -C.y; }
float div = 0.5 * (R - L + T - B);
gl_FragColor = vec4(div, 0.0, 0.0, 1.0);
}
`);
const curlShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying highp vec2 vUv;
varying highp vec2 vL;
varying highp vec2 vR;
varying highp vec2 vT;
varying highp vec2 vB;
uniform sampler2D uVelocity;
void main () {
float L = texture2D(uVelocity, vL).y;
float R = texture2D(uVelocity, vR).y;
float T = texture2D(uVelocity, vT).x;
float B = texture2D(uVelocity, vB).x;
float vorticity = R - L - T + B;
gl_FragColor = vec4(0.5 * vorticity, 0.0, 0.0, 1.0);
}
`);
const vorticityShader = compileShader(gl.FRAGMENT_SHADER, `
precision highp float;
precision highp sampler2D;
varying vec2 vUv;
varying vec2 vL;
varying vec2 vR;
varying vec2 vT;
varying vec2 vB;
uniform sampler2D uVelocity;
uniform sampler2D uCurl;
uniform float curl;
uniform float dt;
void main () {
float L = texture2D(uCurl, vL).x;
float R = texture2D(uCurl, vR).x;
float T = texture2D(uCurl, vT).x;
float B = texture2D(uCurl, vB).x;
float C = texture2D(uCurl, vUv).x;
vec2 force = 0.5 * vec2(abs(T) - abs(B), abs(R) - abs(L));
force /= length(force) + 0.0001;
force *= curl * C;
force.y *= -1.0;
vec2 vel = texture2D(uVelocity, vUv).xy;
gl_FragColor = vec4(vel + force * dt, 0.0, 1.0);
}
`);
const pressureShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying highp vec2 vUv;
varying highp vec2 vL;
varying highp vec2 vR;
varying highp vec2 vT;
varying highp vec2 vB;
uniform sampler2D uPressure;
uniform sampler2D uDivergence;
vec2 boundary (vec2 uv) {
return uv;
}
void main () {
float L = texture2D(uPressure, boundary(vL)).x;
float R = texture2D(uPressure, boundary(vR)).x;
float T = texture2D(uPressure, boundary(vT)).x;
float B = texture2D(uPressure, boundary(vB)).x;
float C = texture2D(uPressure, vUv).x;
float divergence = texture2D(uDivergence, vUv).x;
float pressure = (L + R + B + T - divergence) * 0.25;
gl_FragColor = vec4(pressure, 0.0, 0.0, 1.0);
}
`);
const gradientSubtractShader = compileShader(gl.FRAGMENT_SHADER, `
precision mediump float;
precision mediump sampler2D;
varying highp vec2 vUv;
varying highp vec2 vL;
varying highp vec2 vR;
varying highp vec2 vT;
varying highp vec2 vB;
uniform sampler2D uPressure;
uniform sampler2D uVelocity;
vec2 boundary (vec2 uv) {
return uv;
}
void main () {
float L = texture2D(uPressure, boundary(vL)).x;
float R = texture2D(uPressure, boundary(vR)).x;
float T = texture2D(uPressure, boundary(vT)).x;
float B = texture2D(uPressure, boundary(vB)).x;
vec2 velocity = texture2D(uVelocity, vUv).xy;
velocity.xy -= vec2(R - L, T - B);
gl_FragColor = vec4(velocity, 0.0, 1.0);
}
`);
const blit = (() => {
gl.bindBuffer(gl.ARRAY_BUFFER, gl.createBuffer());
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array([-1, -1, -1, 1, 1, 1, 1, -1]), gl.STATIC_DRAW);
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, gl.createBuffer());
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, new Uint16Array([0, 1, 2, 0, 2, 3]), gl.STATIC_DRAW);
gl.vertexAttribPointer(0, 2, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray(0);
return (destination) => {
gl.bindFramebuffer(gl.FRAMEBUFFER, destination);
gl.drawElements(gl.TRIANGLES, 6, gl.UNSIGNED_SHORT, 0);
}
})();
let simWidth;
let simHeight;
let dyeWidth;
let dyeHeight;
let density;
let velocity;
let divergence;
let curl;
let pressure;
let bloom;
let ditheringTexture = createNoiseTexture(256);
const clearProgram = new GLProgram(baseVertexShader, clearShader);
const colorProgram = new GLProgram(baseVertexShader, colorShader);
const backgroundProgram = new GLProgram(baseVertexShader, backgroundShader);
const displayProgram = new GLProgram(baseVertexShader, displayShader);
const displayBloomProgram = new GLProgram(baseVertexShader, displayBloomShader);
const displayShadingProgram = new GLProgram(baseVertexShader, displayShadingShader);
const displayBloomShadingProgram = new GLProgram(baseVertexShader, displayBloomShadingShader);
const bloomPrefilterProgram = new GLProgram(baseVertexShader, bloomPrefilterShader);
const bloomBlurProgram = new GLProgram(baseVertexShader, bloomBlurShader);
const bloomFinalProgram = new GLProgram(baseVertexShader, bloomFinalShader);
const splatProgram = new GLProgram(baseVertexShader, splatShader);
const advectionProgram = new GLProgram(baseVertexShader, ext.supportLinearFiltering ? advectionShader : advectionManualFilteringShader);
const divergenceProgram = new GLProgram(baseVertexShader, divergenceShader);
const curlProgram = new GLProgram(baseVertexShader, curlShader);
const vorticityProgram = new GLProgram(baseVertexShader, vorticityShader);
const pressureProgram = new GLProgram(baseVertexShader, pressureShader);
const gradienSubtractProgram = new GLProgram(baseVertexShader, gradientSubtractShader);
function initFramebuffers() {
let simRes = getResolution(config.SIM_RESOLUTION);
let dyeRes = getResolution(config.DYE_RESOLUTION);
simWidth = simRes.width;
simHeight = simRes.height;
dyeWidth = dyeRes.width;
dyeHeight = dyeRes.height;
const texType = ext.halfFloatTexType;
const rgba = ext.formatRGBA;
const rg = ext.formatRG;
const r = ext.formatR;
const filtering = ext.supportLinearFiltering ? gl.LINEAR : gl.NEAREST;
if (density == null)
density = createDoubleFBO(dyeWidth, dyeHeight, rgba.internalFormat, rgba.format, texType, filtering);
else
density = resizeDoubleFBO(density, dyeWidth, dyeHeight, rgba.internalFormat, rgba.format, texType, filtering);
if (velocity == null)
velocity = createDoubleFBO(simWidth, simHeight, rg.internalFormat, rg.format, texType, filtering);
else
velocity = resizeDoubleFBO(velocity, simWidth, simHeight, rg.internalFormat, rg.format, texType, filtering);
divergence = createFBO(simWidth, simHeight, r.internalFormat, r.format, texType, gl.NEAREST);
curl = createFBO(simWidth, simHeight, r.internalFormat, r.format, texType, gl.NEAREST);
pressure = createDoubleFBO(simWidth, simHeight, r.internalFormat, r.format, texType, gl.NEAREST);
initBloomFramebuffers();
}
function initBloomFramebuffers() {
let res = getResolution(config.BLOOM_RESOLUTION);
const texType = ext.halfFloatTexType;
const rgba = ext.formatRGBA;
const filtering = ext.supportLinearFiltering ? gl.LINEAR : gl.NEAREST;
bloom = createFBO(res.width, res.height, rgba.internalFormat, rgba.format, texType, filtering);
bloomFramebuffers.length = 0;
for (let i = 0; i < config.BLOOM_ITERATIONS; i++) {
let width = res.width >> (i + 1);
let height = res.height >> (i + 1);
if (width < 2 || height < 2) break;
let fbo = createFBO(width, height, rgba.internalFormat, rgba.format, texType, filtering);
bloomFramebuffers.push(fbo);
}
}
function createFBO(w, h, internalFormat, format, type, param) {
gl.activeTexture(gl.TEXTURE0);
let texture = gl.createTexture();
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, param);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, param);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);
gl.texImage2D(gl.TEXTURE_2D, 0, internalFormat, w, h, 0, format, type, null);
let fbo = gl.createFramebuffer();
gl.bindFramebuffer(gl.FRAMEBUFFER, fbo);
gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.COLOR_ATTACHMENT0, gl.TEXTURE_2D, texture, 0);
gl.viewport(0, 0, w, h);
gl.clear(gl.COLOR_BUFFER_BIT);
return {
texture,
fbo,
width: w,
height: h,
attach(id) {
gl.activeTexture(gl.TEXTURE0 + id);
gl.bindTexture(gl.TEXTURE_2D, texture);
return id;
}
};
}
function createDoubleFBO(w, h, internalFormat, format, type, param) {
let fbo1 = createFBO(w, h, internalFormat, format, type, param);
let fbo2 = createFBO(w, h, internalFormat, format, type, param);
return {
get read() { return fbo1; },
set read(value) { fbo1 = value; },
get write() { return fbo2; },
set write(value) { fbo2 = value; },
swap() {
let temp = fbo1;
fbo1 = fbo2;
fbo2 = temp;
}
}
}
function resizeFBO(target, w, h, internalFormat, format, type, param) {
let newFBO = createFBO(w, h, internalFormat, format, type, param);
clearProgram.bind();
gl.uniform1i(clearProgram.uniforms.uTexture, target.attach(0));
gl.uniform1f(clearProgram.uniforms.value, 1);
blit(newFBO.fbo);
return newFBO;
}
function resizeDoubleFBO(target, w, h, internalFormat, format, type, param) {
target.read = resizeFBO(target.read, w, h, internalFormat, format, type, param);
target.write = createFBO(w, h, internalFormat, format, type, param);
return target;
}
// Procedural noise for dithering (replaces the external LDR texture).
function createNoiseTexture(size) {
const data = new Uint8Array(size * size * 3);
for (let i = 0; i < data.length; i++)
data[i] = Math.floor(Math.random() * 256);
let texture = gl.createTexture();
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT);
gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, size, size, 0, gl.RGB, gl.UNSIGNED_BYTE, data);
return {
texture,
width: size,
height: size,
attach(id) {
gl.activeTexture(gl.TEXTURE0 + id);
gl.bindTexture(gl.TEXTURE_2D, texture);
return id;
}
};
}
initFramebuffers();
// Strong entrance: a dense burst plus several rapid follow-up waves
// (drained one-per-frame by input() via splatStack).
multipleSplats(34);
for (let i = 0; i < 8; i++)
splatStack.push(10 + parseInt(Math.random() * 10));
let lastColorChangeTime = Date.now();
let virtualSeeded = false;
let orbitAngle = 0;
let vPrevX = 0, vPrevY = 0;
let virtualColor = null;
let lastVColorTime = 0;
const engineStart = Date.now();
const ORBIT_RADIUS = 300; // px — the auto-cursor circles the centre at this radius
const ORBIT_SPEED = 0.026; // rad/frame (~4 s per loop)
const ORBIT_START_DELAY = 700; // ms after load before the auto-cursor begins (burst plays first)
let rafHandle = 0;
let destroyed = false;
update();
function update() {
if (destroyed) return;
resizeCanvas();
driveVirtualPointer();
input();
if (!config.PAUSED)
step(0.016);
render(null);
rafHandle = requestAnimationFrame(update);
}
// An invisible auto-cursor orbits the centre FOREVER, independent of the real
// pointer, splatting bright ink along a gently breathing orbit. Starts a beat
// after load so the burst plays first.
function driveVirtualPointer() {
if (Date.now() - engineStart < ORBIT_START_DELAY)
return;
const cx = canvas.width / 2;
const cy = canvas.height / 2;
const base = Math.min(ORBIT_RADIUS, canvas.width * 0.35, canvas.height * 0.35);
const r = base * (0.72 + 0.28 * Math.sin(orbitAngle * 0.37));
orbitAngle += ORBIT_SPEED;
const x = cx + Math.cos(orbitAngle) * r;
const y = cy + Math.sin(orbitAngle) * r;
if (!virtualSeeded) {
virtualSeeded = true;
vPrevX = x;
vPrevY = y;
return;
}
if (!virtualColor || Date.now() - lastVColorTime > 120) {
virtualColor = generateColor();
virtualColor.r *= 3.2;
virtualColor.g *= 3.2;
virtualColor.b *= 3.2;
lastVColorTime = Date.now();
}
const dx = (x - vPrevX) * 9.0;
const dy = (y - vPrevY) * 9.0;
vPrevX = x;
vPrevY = y;
splat(x, y, dx, dy, virtualColor);
}
function input() {
if (splatStack.length > 0)
multipleSplats(splatStack.pop());
for (let i = 0; i < pointers.length; i++) {
const p = pointers[i];
if (p.moved) {
splat(p.x, p.y, p.dx, p.dy, p.color);
p.moved = false;
}
}
if (!config.COLORFUL)
return;
if (lastColorChangeTime + 100 < Date.now()) {
lastColorChangeTime = Date.now();
for (let i = 0; i < pointers.length; i++) {
const p = pointers[i];
p.color = generateColor();
}
}
}
function step(dt) {
gl.disable(gl.BLEND);
gl.viewport(0, 0, simWidth, simHeight);
curlProgram.bind();
gl.uniform2f(curlProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
gl.uniform1i(curlProgram.uniforms.uVelocity, velocity.read.attach(0));
blit(curl.fbo);
vorticityProgram.bind();
gl.uniform2f(vorticityProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
gl.uniform1i(vorticityProgram.uniforms.uVelocity, velocity.read.attach(0));
gl.uniform1i(vorticityProgram.uniforms.uCurl, curl.attach(1));
gl.uniform1f(vorticityProgram.uniforms.curl, config.CURL);
gl.uniform1f(vorticityProgram.uniforms.dt, dt);
blit(velocity.write.fbo);
velocity.swap();
divergenceProgram.bind();
gl.uniform2f(divergenceProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
gl.uniform1i(divergenceProgram.uniforms.uVelocity, velocity.read.attach(0));
blit(divergence.fbo);
clearProgram.bind();
gl.uniform1i(clearProgram.uniforms.uTexture, pressure.read.attach(0));
gl.uniform1f(clearProgram.uniforms.value, config.PRESSURE_DISSIPATION);
blit(pressure.write.fbo);
pressure.swap();
pressureProgram.bind();
gl.uniform2f(pressureProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
gl.uniform1i(pressureProgram.uniforms.uDivergence, divergence.attach(0));
for (let i = 0; i < config.PRESSURE_ITERATIONS; i++) {
gl.uniform1i(pressureProgram.uniforms.uPressure, pressure.read.attach(1));
blit(pressure.write.fbo);
pressure.swap();
}
gradienSubtractProgram.bind();
gl.uniform2f(gradienSubtractProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
gl.uniform1i(gradienSubtractProgram.uniforms.uPressure, pressure.read.attach(0));
gl.uniform1i(gradienSubtractProgram.uniforms.uVelocity, velocity.read.attach(1));
blit(velocity.write.fbo);
velocity.swap();
advectionProgram.bind();
gl.uniform2f(advectionProgram.uniforms.texelSize, 1.0 / simWidth, 1.0 / simHeight);
if (!ext.supportLinearFiltering)
gl.uniform2f(advectionProgram.uniforms.dyeTexelSize, 1.0 / simWidth, 1.0 / simHeight);
let velocityId = velocity.read.attach(0);
gl.uniform1i(advectionProgram.uniforms.uVelocity, velocityId);
gl.uniform1i(advectionProgram.uniforms.uSource, velocityId);
gl.uniform1f(advectionProgram.uniforms.dt, dt);
gl.uniform1f(advectionProgram.uniforms.dissipation, config.VELOCITY_DISSIPATION);
blit(velocity.write.fbo);
velocity.swap();
gl.viewport(0, 0, dyeWidth, dyeHeight);
if (!ext.supportLinearFiltering)
gl.uniform2f(advectionProgram.uniforms.dyeTexelSize, 1.0 / dyeWidth, 1.0 / dyeHeight);
gl.uniform1i(advectionProgram.uniforms.uVelocity, velocity.read.attach(0));
gl.uniform1i(advectionProgram.uniforms.uSource, density.read.attach(1));
gl.uniform1f(advectionProgram.uniforms.dissipation, config.DENSITY_DISSIPATION);
blit(density.write.fbo);
density.swap();
}
function render(target) {
if (config.BLOOM)
applyBloom(density.read, bloom);
if (target == null || !config.TRANSPARENT) {
gl.blendFunc(gl.ONE, gl.ONE_MINUS_SRC_ALPHA);
gl.enable(gl.BLEND);
}
else {
gl.disable(gl.BLEND);
}
let width = target == null ? gl.drawingBufferWidth : dyeWidth;
let height = target == null ? gl.drawingBufferHeight : dyeHeight;
gl.viewport(0, 0, width, height);
if (!config.TRANSPARENT) {
colorProgram.bind();
let bc = config.BACK_COLOR;
gl.uniform4f(colorProgram.uniforms.color, bc.r / 255, bc.g / 255, bc.b / 255, 1);
blit(target);
}
if (target == null && config.TRANSPARENT) {
backgroundProgram.bind();
gl.uniform1f(backgroundProgram.uniforms.aspectRatio, canvas.width / canvas.height);
blit(null);
}
if (config.SHADING) {
let program = config.BLOOM ? displayBloomShadingProgram : displayShadingProgram;
program.bind();
gl.uniform2f(program.uniforms.texelSize, 1.0 / width, 1.0 / height);
gl.uniform1i(program.uniforms.uTexture, density.read.attach(0));
if (config.BLOOM) {
gl.uniform1i(program.uniforms.uBloom, bloom.attach(1));
gl.uniform1i(program.uniforms.uDithering, ditheringTexture.attach(2));
let scale = getTextureScale(ditheringTexture, width, height);
gl.uniform2f(program.uniforms.ditherScale, scale.x, scale.y);
}
}
else {
let program = config.BLOOM ? displayBloomProgram : displayProgram;
program.bind();
gl.uniform1i(program.uniforms.uTexture, density.read.attach(0));
if (config.BLOOM) {
gl.uniform1i(program.uniforms.uBloom, bloom.attach(1));
gl.uniform1i(program.uniforms.uDithering, ditheringTexture.attach(2));
let scale = getTextureScale(ditheringTexture, width, height);
gl.uniform2f(program.uniforms.ditherScale, scale.x, scale.y);
}
}
blit(target);
}
function applyBloom(source, destination) {
if (bloomFramebuffers.length < 2)
return;
let last = destination;
gl.disable(gl.BLEND);
bloomPrefilterProgram.bind();
let knee = config.BLOOM_THRESHOLD * config.BLOOM_SOFT_KNEE + 0.0001;
let curve0 = config.BLOOM_THRESHOLD - knee;
let curve1 = knee * 2;
let curve2 = 0.25 / knee;
gl.uniform3f(bloomPrefilterProgram.uniforms.curve, curve0, curve1, curve2);
gl.uniform1f(bloomPrefilterProgram.uniforms.threshold, config.BLOOM_THRESHOLD);
gl.uniform1i(bloomPrefilterProgram.uniforms.uTexture, source.attach(0));
gl.viewport(0, 0, last.width, last.height);
blit(last.fbo);
bloomBlurProgram.bind();
for (let i = 0; i < bloomFramebuffers.length; i++) {
let dest = bloomFramebuffers[i];
gl.uniform2f(bloomBlurProgram.uniforms.texelSize, 1.0 / last.width, 1.0 / last.height);
gl.uniform1i(bloomBlurProgram.uniforms.uTexture, last.attach(0));
gl.viewport(0, 0, dest.width, dest.height);
blit(dest.fbo);
last = dest;
}
gl.blendFunc(gl.ONE, gl.ONE);
gl.enable(gl.BLEND);
for (let i = bloomFramebuffers.length - 2; i >= 0; i--) {
let baseTex = bloomFramebuffers[i];
gl.uniform2f(bloomBlurProgram.uniforms.texelSize, 1.0 / last.width, 1.0 / last.height);
gl.uniform1i(bloomBlurProgram.uniforms.uTexture, last.attach(0));
gl.viewport(0, 0, baseTex.width, baseTex.height);
blit(baseTex.fbo);
last = baseTex;
}
gl.disable(gl.BLEND);
bloomFinalProgram.bind();
gl.uniform2f(bloomFinalProgram.uniforms.texelSize, 1.0 / last.width, 1.0 / last.height);
gl.uniform1i(bloomFinalProgram.uniforms.uTexture, last.attach(0));
gl.uniform1f(bloomFinalProgram.uniforms.intensity, config.BLOOM_INTENSITY);
gl.viewport(0, 0, destination.width, destination.height);
blit(destination.fbo);
}
function splat(x, y, dx, dy, color) {
gl.viewport(0, 0, simWidth, simHeight);
splatProgram.bind();
gl.uniform1i(splatProgram.uniforms.uTarget, velocity.read.attach(0));
gl.uniform1f(splatProgram.uniforms.aspectRatio, canvas.width / canvas.height);
gl.uniform2f(splatProgram.uniforms.point, x / canvas.width, 1.0 - y / canvas.height);
gl.uniform3f(splatProgram.uniforms.color, dx, -dy, 1.0);
gl.uniform1f(splatProgram.uniforms.radius, config.SPLAT_RADIUS / 100.0);
blit(velocity.write.fbo);
velocity.swap();
gl.viewport(0, 0, dyeWidth, dyeHeight);
gl.uniform1i(splatProgram.uniforms.uTarget, density.read.attach(0));
gl.uniform3f(splatProgram.uniforms.color, color.r, color.g, color.b);
blit(density.write.fbo);
density.swap();
}
function multipleSplats(amount) {
for (let i = 0; i < amount; i++) {
const color = generateColor();
color.r *= 10.0;
color.g *= 10.0;
color.b *= 10.0;
const x = canvas.width * Math.random();
const y = canvas.height * Math.random();
const dx = 1000 * (Math.random() - 0.5);
const dy = 1000 * (Math.random() - 0.5);
splat(x, y, dx, dy, color);
}
}
function resizeCanvas() {
if (canvas.width != canvas.clientWidth || canvas.height != canvas.clientHeight) {
canvas.width = canvas.clientWidth;
canvas.height = canvas.clientHeight;
initFramebuffers();
}
}
// The canvas renders BEHIND page content, so pointer data is read from window
// events and mapped into canvas space via its bounding rect. Listeners are
// passive and never preventDefault, so page scroll is untouched.
function pointerPos(clientX, clientY) {
const rect = canvas.getBoundingClientRect();
return { x: clientX - rect.left, y: clientY - rect.top };
}
const teardown = [];
function on(target, type, handler, opts) {
target.addEventListener(type, handler, opts);
teardown.push(() => target.removeEventListener(type, handler, opts));
}
on(window, 'mousemove', e => {
const { x, y } = pointerPos(e.clientX, e.clientY);
const p = pointers[0];
if (!p.everMoved) {
p.everMoved = true;
p.x = x;
p.y = y;
p.down = true;
return;
}
p.down = true;
p.moved = true;
p.dx = (x - p.x) * 5.0;
p.dy = (y - p.y) * 5.0;
p.x = x;
p.y = y;
p.color = generateColor();
});
on(window, 'touchmove', e => {
const touches = e.targetTouches;
for (let i = 0; i < touches.length; i++) {
if (i >= pointers.length)
pointers.push(new pointerPrototype());
const p = pointers[i];
const { x, y } = pointerPos(touches[i].clientX, touches[i].clientY);
p.down = true;
p.moved = p.everMoved === true;
p.everMoved = true;
p.dx = (x - p.x) * 8.0;
p.dy = (y - p.y) * 8.0;
p.x = x;
p.y = y;
}
}, { passive: true });
on(window, 'touchstart', e => {
const touches = e.targetTouches;
for (let i = 0; i < touches.length; i++) {
if (i >= pointers.length)
pointers.push(new pointerPrototype());
const p = pointers[i];
const { x, y } = pointerPos(touches[i].clientX, touches[i].clientY);
p.id = touches[i].identifier;
p.down = true;
p.x = x;
p.y = y;
p.color = generateColor();
}
}, { passive: true });
on(window, 'mouseup', () => {
pointers[0].down = false;
});
on(window, 'touchend', e => {
const touches = e.changedTouches;
for (let i = 0; i < touches.length; i++)
for (let j = 0; j < pointers.length; j++)
if (touches[i].identifier == pointers[j].id)
pointers[j].down = false;
});
return function destroy() {
destroyed = true;
if (rafHandle) cancelAnimationFrame(rafHandle);
for (const off of teardown) off();
};
function generateColor() {
// Electric cyan→blue→violet→magenta band, full brightness, for a vivid,
// slick, immersive palette.
const h = 0.5 + Math.random() * 0.42;
let c = HSVtoRGB(h, 0.95, 1.0);
c.r *= 0.92;
c.g *= 0.92;
c.b *= 0.92;
return c;
}
function HSVtoRGB(h, s, v) {
let r, g, b, i, f, p, q, t;
i = Math.floor(h * 6);
f = h * 6 - i;
p = v * (1 - s);
q = v * (1 - f * s);
t = v * (1 - (1 - f) * s);
switch (i % 6) {
case 0: r = v, g = t, b = p; break;
case 1: r = q, g = v, b = p; break;
case 2: r = p, g = v, b = t; break;
case 3: r = p, g = q, b = v; break;
case 4: r = t, g = p, b = v; break;
case 5: r = v, g = p, b = q; break;
}
return { r, g, b };
}
function getResolution(resolution) {
let aspectRatio = gl.drawingBufferWidth / gl.drawingBufferHeight;
if (aspectRatio < 1)
aspectRatio = 1.0 / aspectRatio;
let max = Math.round(resolution * aspectRatio);
let min = Math.round(resolution);
if (gl.drawingBufferWidth > gl.drawingBufferHeight)
return { width: max, height: min };
else
return { width: min, height: max };
}
function getTextureScale(texture, width, height) {
return { x: width / texture.width, y: height / texture.height };
}
}
```
Mount it after DOM ready:
```js
const canvas = document.querySelector("canvas");
if (canvas) fluidSimulation(canvas);
```
The canvas must have real pixel size — give it `width:100%;height:100%` via CSS and the engine reads
`clientWidth/clientHeight`. It resizes itself each frame.
## Fixed parameters (bake these in)
- **Copy:** brand `Flowstate`; nav links `How it works? / Pricing / Products / Blog`; nav CTA
`Get Started`; badge `10K+ already in flow`; heading `Deep Work in a Distracted World`; sub-line
`Cut through the noise, reclaim your attention, and do work that truly matters.`; email placeholder
`Enter your email`; submit `Join Waitlist`; footer `© 2026 Flowstate — engineered for deep work.`
- **Fluid config (already in the engine):** SIM_RESOLUTION 200, DYE_RESOLUTION 512,
DENSITY_DISSIPATION 0.958, VELOCITY_DISSIPATION 0.96, PRESSURE_DISSIPATION 0.8,
PRESSURE_ITERATIONS 20, CURL 42, SPLAT_RADIUS 0.22, SHADING true, COLORFUL true, BLOOM false,
BACK_COLOR (4,5,12). Load burst: `multipleSplats(34)` + 8 queued waves. Auto-cursor: ORBIT_RADIUS
300, ORBIT_SPEED 0.026 rad/frame, ORBIT_START_DELAY 700ms, breathing `0.72 + 0.28*sin(angle*0.37)`.
Ink hue band `0.5 + random*0.42`, sat 0.95, val 1.0.
- **Colors:** as in the CSS custom-properties block above.
- **Reveal delays (ms):** nav 150, badge 320, heading 480, sub-line 1150, form 1450, footer 1650.
Heading word stagger 85ms / dur 720ms / from y+26px; sub-line word stagger 22ms / dur 600ms /
from y+14px; block reveals ~700ms `cubic-bezier(0.2,0,0,1)`.
- **Breakpoints:** sm = 640px, plus the ≥1024px and ≥1440px/1920px root-font-size steps above.
- **Type:** Onest, weights 400 / 500.
## Assets
None. (Fonts load from Google Fonts; the dithering texture is generated procedurally in-engine; no
models, images, or video.)
The implementation is incomplete if the normal root is only a poster, animated image, video plate with no real interface, non-functional visual mock, or unrelated procedural demo.
## Frame and geometry lock
Treat the 960 × 610px cached capture as a measured artboard.
- Reproduce the same major horizontal and vertical zones, their order, their relative widths and heights, and their alignment.
- Match the focal subject's center, scale, crop, overlap, and amount of surrounding negative space.
- Match text block width, line count, alignment, approximate cap height, and distance to adjacent controls.
- Match navigation height, side insets, card radii, border weight, shadow softness, media crop, and surface density.
- Preserve what is above the fold. Do not push the defining visual below the viewport.
- Do not add a large wrapper card, browser frame, floating navigation pill, side rail, or hero panel unless the reference contains it.
- Use CSS custom properties for sampled canvas, surface, text, border, accent, shadow, radius, and spacing values. Sample from the reference rather than choosing a new palette.
- Match the reference at its native capture size first, then at 1440 × 900px. A responsive version is not allowed to change the desktop art direction.
## Required page anatomy
Build the root view first and in this order:
1. Canvas and page shell: reproduce the base color, texture, clipping, overflow, and minimum-height behavior.
2. Global or application navigation: recreate only the controls and density visible in the reference.
3. Primary copy or information region: keep its exact side, width, hierarchy, alignment, and line wrapping.
4. Primary visual or working surface: implement Flowstate recognizable focal composition as the dominant artifact.
5. Supporting reference cues: implement 3d website typography, controls, spacing, and viewport occupancy; 3d website motion, responsive behavior, and interaction.
6. First fold transition: include only the content already visible at the lower edge of the reference.
The primary view is 'Flowstate interactive root view'. The following may be implemented only after the root screenshot passes: working control state; responsive and reduced-motion state. They must not replace, precede, or visually dilute the root artifact.
## Interaction and state fidelity
- Every control visible in the reference must have an appropriate hover, focus, active, and disabled treatment.
- Buttons, tabs, filters, form fields, menus, close controls, and primary actions must work instead of being decorative.
- Use realistic flowstate motion-led digital experience data for Flowstate, 3D Website, 3D website, interactive focal subject, semantic interface copy; preserve the visible density and formatting of the source.
- Keep all initial values deterministic so the first screenshot is stable on every reload.
- Animation must begin in the same visual state as the reference and settle into the same hierarchy. Do not add perpetual motion to elements that are still in the source.
- Prefer transform and opacity for UI transitions. Pause expensive work when offscreen or when the document is hidden.
- Respect 'prefers-reduced-motion' with a composed static state that still matches the settled reference.
- Never autoplay sound.
## Asset rules
- Preserve the exact HTTPS reference URLs in a source-credit/QA comment. Do not convert them to localhost paths, guessed filenames, expired blob URLs, or runtime media unless the public source recipe explicitly identifies that media as part of the implementation.
- Do not hotlink logos, portraits, product photography, or proprietary media from the source page unless the recorded source terms permit it. For visual QA, the Foxora cached reference remains available as a comparison target.
- Foxora posters and animated WebPs are visual QA references only. They must not be rendered at the normal root for Motion, Website, or App entries.
- Build the real DOM, CSS, SVG, canvas, WebGL, or source-media implementation as the default experience. Never pretend a poster, screenshot, or screen recording is interactive UI.
- Provide an intentional fallback for asset failure that keeps the layout dimensions stable.
- Keep the reconstructed primary subject sharp at desktop and mobile densities; preserve the measured crop and aspect ratio without stretching.
## Responsive behavior
- Desktop geometry is reference-measured. Tablet and mobile are careful recompositions of the same hierarchy, not new designs.
- At narrower widths, preserve the focal subject before secondary decoration; reduce or move peripheral labels only when necessary.
- Keep text readable without changing its character, maintain at least 44px interactive targets, and avoid horizontal overflow.
- Preserve deliberate overlap and crop relationships. Do not stack every element into generic full-width cards.
- Test at 1440 × 900, 1024 × 768, 768 × 1024, and 390 × 844.
## Accessibility
- Use semantic landmarks and heading order, labeled controls, meaningful alt text, visible keyboard focus, and logical tab order.
- Keep essential text and controls at WCAG AA contrast.
- Do not make motion the only carrier of meaning.
- Avoid adding visually hidden interaction that conflicts with what sighted users see.
## Implementation order — do not skip
1. Open and inspect every available URL in the reference pack.
2. Observe the reference at native size. Record, internally, the major zone bounds, focal point, text line count, palette, type character, border radius, and shadow behavior.
3. For motion, inspect opening, midpoint, and settled states. For an app, identify every pane and control. For a website, identify the hero and first fold transition.
4. Implement the mandatory recipe above before creating any secondary component. Build the real page shell, defining motion or working surface, visible copy, and controls now.
5. Render at 960 × 610px and compare side by side with https://showcase.foxora.studio/thumbnails/curated-getlayers-flowstate.webp.
6. Correct geometry, typography, color, crop, and density before adding secondary behavior.
7. Render at 1440 × 900px and repeat the comparison.
8. Add working interactions and responsive layouts without changing the approved desktop composition.
9. Run a final browser check for console errors, missing assets, broken controls, overflow, reduced motion, and keyboard access.
## Visual acceptance gate
The implementation passes only when all of these are true:
- At first glance, the root screenshot is recognizably Flowstate, not merely the same genre.
- The root artifact is still a real, responsive 3d website experience reconstructed from the motionsites reference in the flowstate motion-led digital experience domain.
- Major zone bounds, focal-subject position, and viewport occupancy are within roughly 4% of the reference.
- Heading and primary copy line counts match; typography does not wrap into a different composition.
- The dominant palette, contrast distribution, surface density, radii, and shadow character match the cached capture.
- All three signature moments are present: Flowstate recognizable focal composition; 3d website typography, controls, spacing, and viewport occupancy; 3d website motion, responsive behavior, and interaction.
- None of the prohibited substitutes appear: rendering the Foxora poster or animated WebP as the page; an unrelated stock 3D model or generic gradient scene; decorative controls or text baked into a screenshot instead of real DOM.
- The exact source links and credit remain in a code comment or project documentation.
- All referenced assets return successfully over HTTPS; no visible broken image, CORS failure, or localhost-only URL remains.
- The root experience works at '/', without '#cta' or another hash being required.
- The opening, midpoint, and settled motion states remain recognizably equivalent to the reference.
- The normal root contains real text and working controls, and no Foxora reference asset is rendered by an image, video, background, texture, iframe, overlay, loading state, or fallback.
- A still poster, animated WebP player, generic primitive, unrelated WebGL object, or video with no real interface does not count as completion.
## Fail-closed rule
If the primary visual anchor, root artifact, or major composition differs materially from the reference, the project is incomplete even when the code compiles. A page that merely renders Foxora's reference media is also incomplete even when its pixels match. Continue correcting the real root view and its interactions or report the exact blocker. Do not claim success, add unrelated sections, or substitute a simpler design.
Return the working implementation and a concise verification note listing the tested route, viewports, reference URLs, and any intentional deviation.
